Fittings

Cast iron fittings made to IS 1538/93. The drawings show the range. For sizes, pressure class or a pattern not shown, send an enquiry.

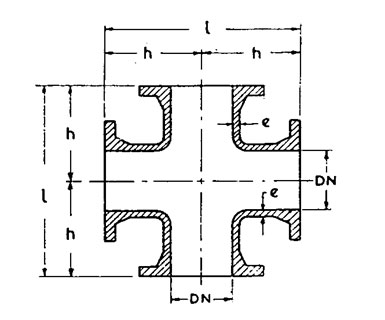

Drawing of all-flanged cross — All-flanged cross

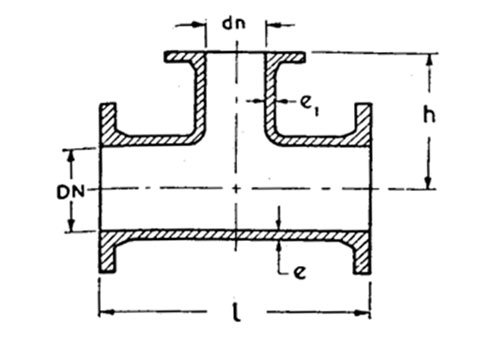

Drawing of all-flanged tee — All-flanged tee

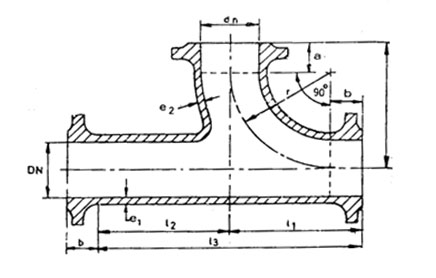

Drawing of all-flanged radial tee — All-flanged radial tee

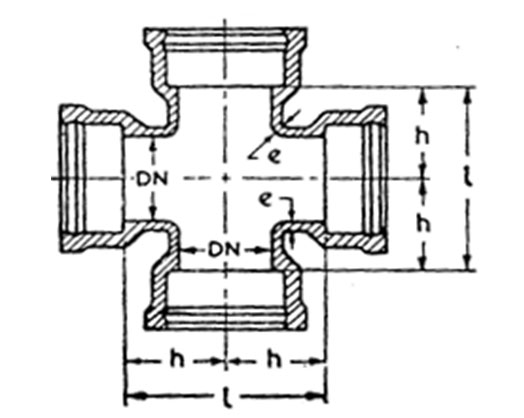

Drawing of all-socket cross — All-socket cross

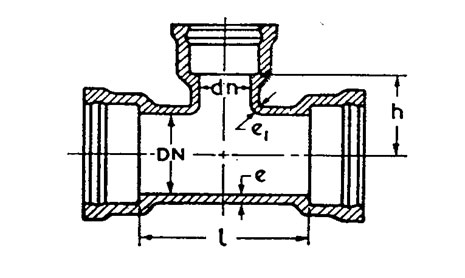

Drawing of all-socket tee — All-socket tee

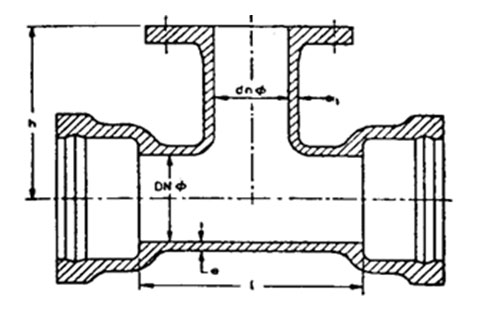

Drawing of double-socket tee with flange — Double-socket tee with flange

Drawing of double-flanged bend, 90° — Double-flanged bend, 90°

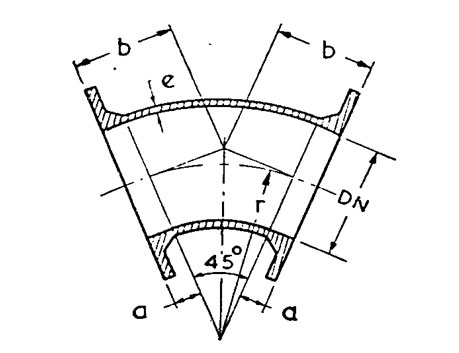

Drawing of double-flanged bend, 45° — Double-flanged bend, 45°

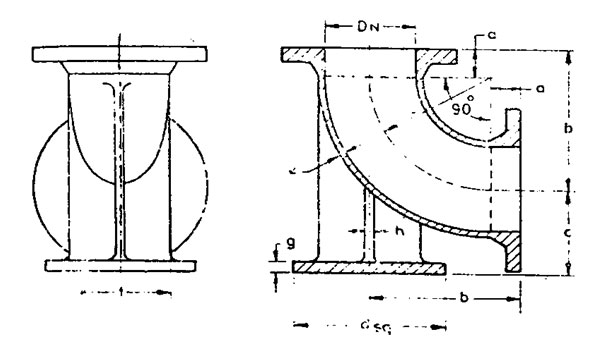

Drawing of double-flanged duckfoot bend — Double-flanged duckfoot bend

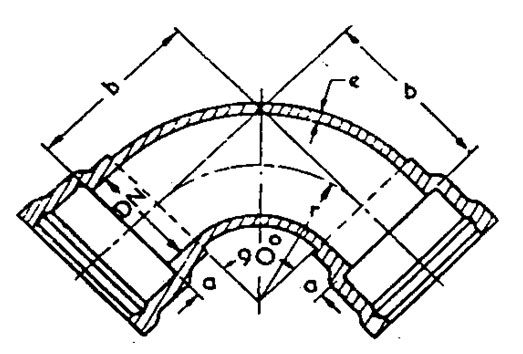

Drawing of double-socket bend, 90° — Double-socket bend, 90°

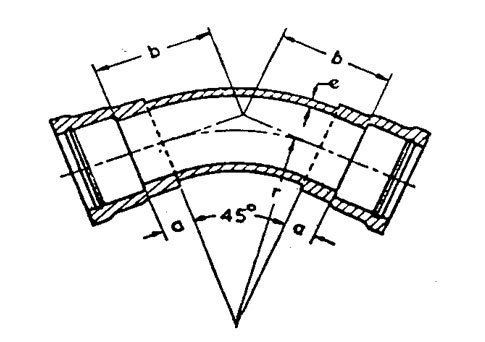

Drawing of double-socket bend, 45° — Double-socket bend, 45°

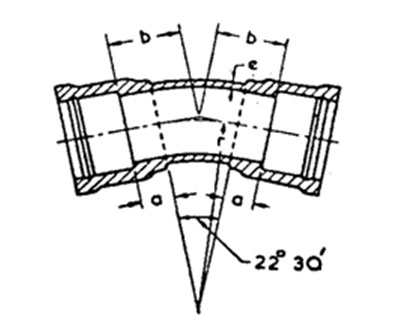

Drawing of double-socket bend, 22 and a half° — Double-socket bend, 22½°

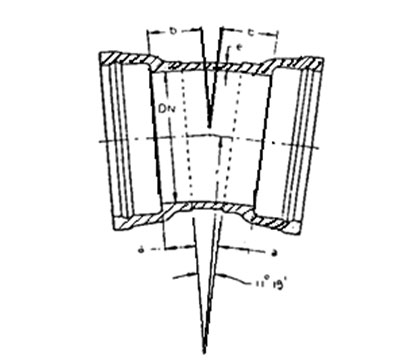

Drawing of double-socket bend, 11 and a quarter° — Double-socket bend, 11¼°

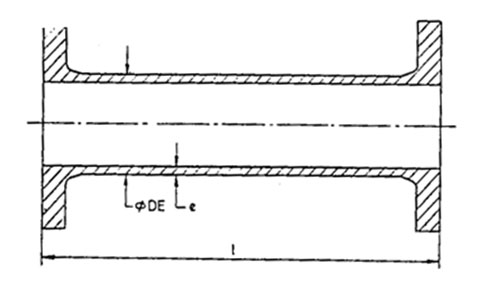

Drawing of double-flanged pipe — Double-flanged pipe

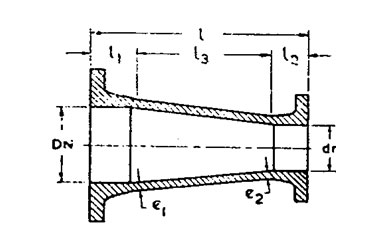

Drawing of double-flanged taper — Double-flanged taper

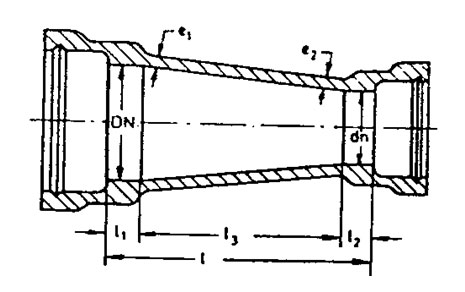

Drawing of double-socket taper — Double-socket taper

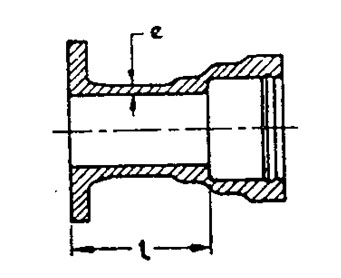

Drawing of flanged socket — Flanged socket

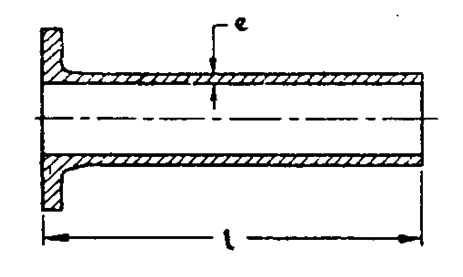

Drawing of flanged spigot — Flanged spigot

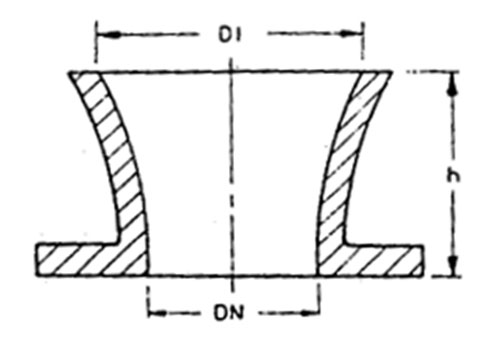

Drawing of bell mouth piece — Bell mouth piece

Drawing of blank flange — Blank flange

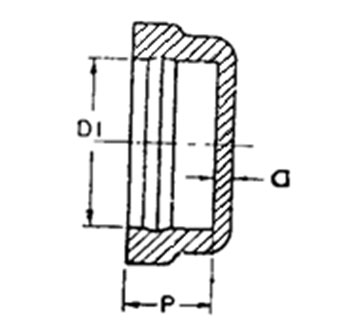

Drawing of cap — Cap

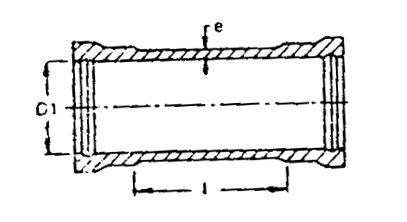

Drawing of collar — Collar

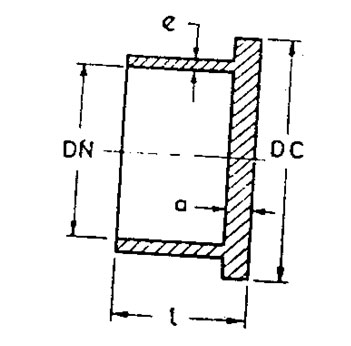

Drawing of plug — Plug

Tell us what you need

Send the product, size, quantity and standard. We reply by email or phone.

Send an enquiry
